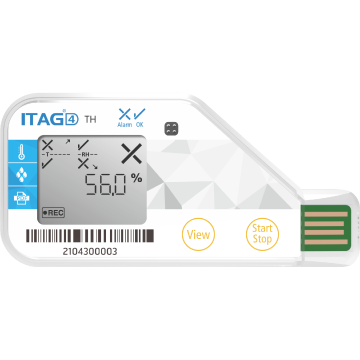

ITAG4

Single Use USB PDF Temperature Recording Indicator
P/N G4
ITAG4
  • 151724508192
  • Measurement

    -30°C...70°C

  • Memory

    14400 readings

  • Battery Life

    90 days

  • Sensor

    Internal NTC Sensor

PDF

Automatically generates encrypted PDF format report, no software required to access data file. PDF report includes recording summaries, statistics, alarm information, graph and optional tabular data. Embedded standard format raw data allows further data processing via TempSen Cloud and 3rd party system

CFG

Rapid programming data logger using configuration file created online, no need to install software or driver for device configuration, multiple platforms compatible

Air Safe

Complies with IATA PI970 II and RTCA/DO-160G Environmental Conditions and Test Procedures for Airborne Equipment, qualified for air shipment in active status.

LCD Display

  • OK(✓), Alarm(x), Running status
  • Violation duration of each alarm zone
  • Temperature statistics (max, min, avg)
Apply CFG

This product supports software-free online configuration, please download configuration file from Online Utility and save it to logger to configure device

Factory Configuration

We provide factory pre-programming service for this product, please select your factory configurations here

TempSen Cloud

TempSen Cloud is a powerful cold chain data management service hosted on cloud, it provides customers with global data access, efficient shipment management and seamless supply chain collaboration

SPECIFICATIONS

Usage Type
Single Use
Sensors
Temperature: Internal NTC sensor
Memory Capacity
14400 readings
Measurement Range
-30°C...70°C (-22°F...158°F)
Accuracy
±0.3°C (-20°C...20°C), ±0.5°C (other range)
Resolution
0.1°C / °F
Start Mode
Manual / Auto start
Logging Interval
1 minute...2 hours
Alarm Ranges
High and low alarm
Battery
3.0V lithium battery
Battery Life
90 days max
Shelf Life
24 months (12 months if activated)
Display
LCD
•OK(✓), Alarm(x), Running status
•Violation duration of each alarm zone
•Temperature statistics (max, min, avg)
Button(s)
Start / Stop / View
Connection
USB
Automatic Data File
Encrypted PDF report with embedded raw data
Software
TempCentre Data Management Software
Compatible OS
Windows 7 / 8 / 10
Calibration
Factory Sampling 6-point Calibration (AQL 0.25)
Certifications
CE, EN12830, WHO pre-qualified (PQS Code E006/044), RTCA-DO160G, IATA PI970 II, WEEE, RoHS, Manufacturer's Validation Certificate
Protection Class
IP65
Dimensions
93mm L x 45mm W x 7mm H
Weight
Approx. 24g
