PN: PD100XB

Tempod 100XB

Bluetooth USB PDF Extra Low Temperature Data Logger with External RTD Probe

  • Overview
  • Specifications
  • Downloads
  • Accessories

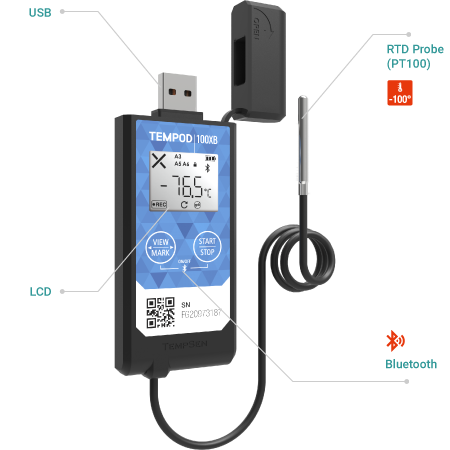

Tempod 100XB

Measurement

-100°C...70°C

Connection

Bluetooth + USB

Memory

28800 readings

Sensor

External RTD Probe

Bluetooth 4.0

Access, control and download data logger outside of packages, refrigerators or vehicles through remote Bluetooth® Low Energy (BLE) communication

PDF Report Embedded with Extractable Raw Data

Automatically generates encrypted PDF format report, no software required to access data file. PDF report includes recording summaries, statistics, alarm information, graph and optional tabular data. Embedded standard format raw data allows further data processing via TempSen Cloud and 3rd party system

Software-free Configuration

Rapid programming data logger using configuration file created online, no need to install software or driver for device configuration, multiple platforms compatible

Multiple Alarm Zones

Up to 5 alarm ranges offer detailed and precise temperature excursion statistics

Air Freight Compliance

Complies with IATA PI970 II and RTCA/DO-160G Environmental Conditions and Test Procedures for Airborne Equipment, qualified for air shipment in active status.

Solution Highlights

  • Access, control and download data logger outside of package, refrigerator or vehicle through remote Bluetooth® Low Energy (BLE) communication
  • Flight mode allows data loggers to keep recording with Bluetooth signal transmission turned off, and Bluetooth could be turned on remotely using TempSen Go App on mobile device.
  • Software-free cold chain monitoring solution, no software is needed for programming and downloading logger
  • Repeat start allows restarting new recording without reprogramming
  • External sensor probe with extreme low temperature resistance cable allows measurement of extreme low temperature environment (applicable to models with external temperature probe)
  • LCD presents all key information including recording statistics, alarm and running status, remaining battery volume
  • Factory 3-point calibration, each logger comes with a NIST traceable calibration certificate

Specifications

Usage Type
Multi-use
Sensors
Temperature: External RTD sensor probe (1m)
Memory Capacity
28800 readings
Measurement Range
-100°C...70°C (-148°F...158°F)
Accuracy
±0.5°C
Resolution
0.1°C / °F
Start Mode
Manual / Auto / Temperature Start
Logging Interval
1 minute...2 hours
Alarm Ranges
High and low alarm / 5 alarm ranges
Battery
3.0V lithium battery, user replaceable
Battery Life
12 months
Display
LCD
  • OK(√), Alarm(x), alarm zones
  • Running status
  • Bluetooth signal and status
  • Temperature statistics (max, min, avg)
  • Remaining battery level
  • Mark history
Button(s)
Start / Stop / View / Mark
Connection
USB, Bluetooth 4.0
Automatic Data File
Encrypted PDF report with embedded raw data
Software
TempSen Express
Compatible OS
Windows 7 / 10 / 11
Calibration
Factory NIST traceable 3-point calibration
Certifications
CE, FCC, RTCA-DO160G, IATA PI970 II, RoHS, WEEE
Protection Class
IP65
Dimensions
100mm L x 40mm W x 12mm H
Weight
Approx. 70g
